Wafer Type Stainless Steel Butterfly Valve

Price:

US 8-3000 / Piece

Min.Order Quantity:

5 Piece/Pieces

Supply Ability:

300 Piece/Pieces per Month

Port:

TIANJIN

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

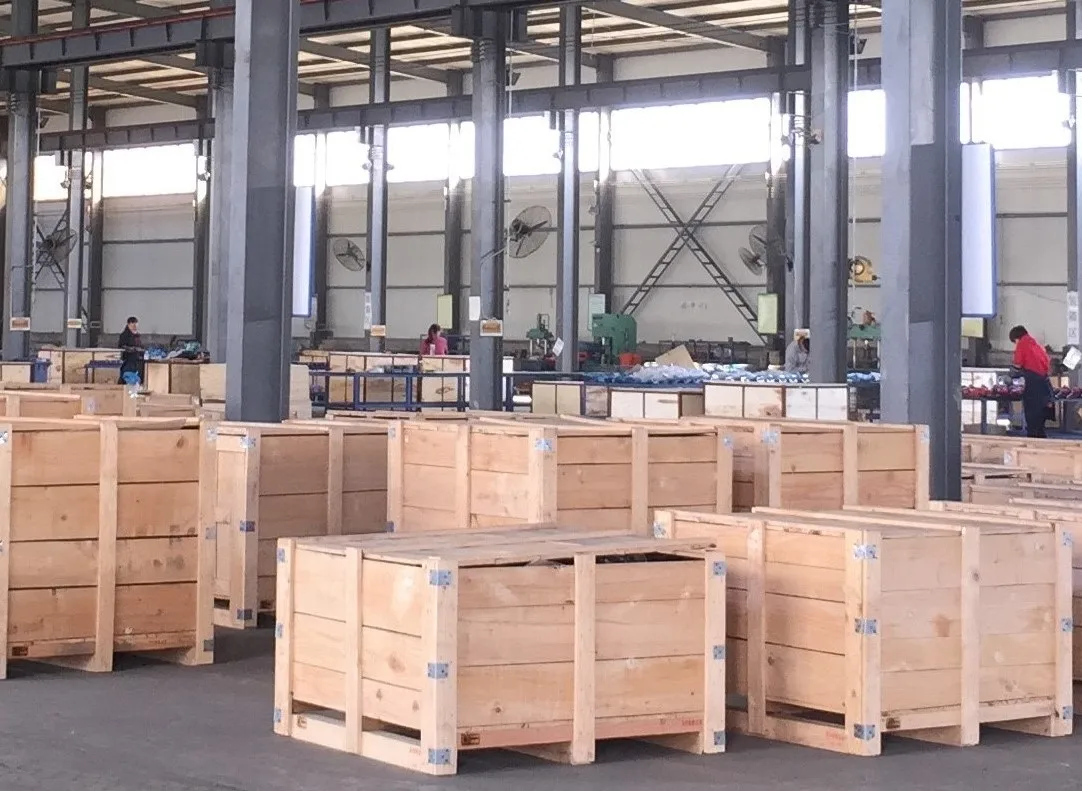

Packaging Details: Ply Wooden Cases
Delivery Detail: Shipped in 30 days after payment

Specifications

Product Description

Design: EN593 / BS5155 / MSS SP-67
Class: PN10/16, 125Lbs
Face to face: API 609; EN558 1-20 Series
Flange Connection: GB, DIN, BS, JIS, ANSI
Testing: API 598
Size:DN40-DN300

Size / Working Pressure	Operator	Material of Main Parts
DN32-DN600: PN10-16	Handle Lever, Worm Gear, Electrical Actuator, Pneumatic Actuator	Body: Stainless Steel (ASTM A351 CF8, CF8M; CF3, CF3M; Carbon Steel: ASTM A216 WCB) Stem: Stainless Steel (ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416) Seat: PTFE, NBR, EPDM; Disc: Ductile Cast Iron Fully covered PTFE; Stainless Steel (ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501); O-Ring: NBR, EPDM, Neoprene, Viton; Bushing: PTFE, Nylon, Lubricated Bronze;

Packaging & Shipping

Company Information

Anhui Sunval International Co., Ltd. is a professional supplier of valves and piping systems. Our company focuses on iron valves, steel valves, copper alloy valves, pipes and related accessories etc.

Our main products are gate valve (resilient seated or Metal seated), globe valve, check valve, ball valve, butterfly valve, air vent valve, strainer, control valves and pipe fittings with main material of cast iron, ductile iron, carbon steel, stainless steel and copper alloy. The pressure rating is 0.6Mpa - 150.0Mpa and size range is DN15-DN2400 . The valves are designed and manufactured in accordance with the standards of GB,ANSI,API,DIN ,BS,JIS and widely used for water, oil and gas industries. We have obtained certificates of ISO9001, CE, WRAS etc..

Sunval has been selling to 40 countries in Asia, Europe, America and Africa.
